Pallet rack is a material handling storage aid system designed to store materials on pallets (or “skids”). Although there are many varieties of pallet racking, all types allow for the storage of palletized materials in horizontal rows with multiple levels. Forklift trucks are usually required to place the loaded pallets onto the racks for storage. Since the Second World War, pallet racks have become a ubiquitous element of most modern warehouses, manufacturing facilities, retail centers, and other storage and distribution facilities. All types of pallet racking increase storage density of the stored goods. Costs associated with the racking increases with increasing storage density.
Type of Pallet Racking
Selective pallet racking is a common pallet racking system in use today. Selective pallet racking systems typically come in one of two configurations: a roll formed, or clip-in configuration, and a structural bolt-together configuration.
- Roll formed selective rack is most commonly manufactured in a “teardrop” style (so named as the holes on the column of the upright are shaped like a teardrop). Pallets then rest on the horizontal load beams that are held in place by mounting clips. Because the clips on teardrop configurations can be quickly moved, the shelves can be easily adjusted to different heights to accommodate various load sizes. This is convenient for a warehouse that needs to store a wide variety of product sizes.
- Structural pallet rack systems are very similar to roll formed pallet rack systems except the horizontal load beams are attached to the uprights with bolts and have much greater weight-bearing capacity. The bolt fixings make this a form of adjustable shelving – racks can be constructed, reconfigured, and dismantled and reused as necessary.
Structural pallet racking can be designed into the structure of the building itself, so that the upright columns are simultaneously used to support the roof of the storage facility, in which case the structural pallet rack uprights replace the storage building’s vertical support I-beams. This system is a rack supported building.
Selective pallet rack systems provide easy accessibility to all products at all times – important if the inventory is rapidly depleted and restocked (called quick turnover). A selective pallet rack system is commonly used in a “big-box” distribution application, as well as in retail store inventory rooms, cold storage applications, wholesale stores, etc.
Shuttle Rack is an innovation for storage. It is reliable Helps to store a lot of products Disburse goods quickly and work safely. Therefore able to solve problems within the warehouse efficiently And is considered a new alternative to the storage format that uses the space inside the warehouse for cost-effective
The Shuttle Rack consists of a rack and a shuttle car by the Shuttle Car to receive orders from remote remotely. And acts as a runner to send pallets to the rails that are installed inside the rack Which the forklifts do not need to drive inside the rack Thereby reducing the risk of dropping classes during storage of goods
Drive-in and drive-through (sometimes spelled Drive-thru) are storage rack configurations that allow the forklift to drive directly into the lane of stacked rows (called a bay). The difference between a drive-in and a drive-thru pallet rack system is simply whether the bays have an entry at only one end, or at both ends. Drive-in rack systems use a common entry and exit, while drive-thru systems have entry points at either end of the bay. Because a drive-in racking system has only one entrance, it uses what is called a LIFO (last in, first out) storage method. With only one entrance, the last pallet put into a row is necessarily the first one to be taken out. A drive-thru storage system, with two different entry points, can also use a FIFO (first in, first out) storage method. With a FIFO system, pallets are loaded in one end and are pushed back to the other end, where they are then at the front of the row on the opposite side. The first pallet put into such a row is the first one taken out at the other end. This system is advantageous for material with an expiration date or wherever shelf life is a major concern.
Push-back pallet rack systems are designed around the principle of organizing space by depth rather than width. This depth arrangement greatly reduces aisle space and increases storage density. In this configuration, each bay can be up to six pallets deep; each pallet stored on wheeled carts that fit onto rails. The rails are slightly angled toward the load/unload side of the rack in order to take advantage of gravity, saving enormous amounts of energy for moving heavy pallets. When a forklift sets the pallet onto the cart, it drives forward and causes the pallet to bump the next pallet, causing the entire row of pallets to roll backwards. When removing a pallet from the front position the remaining pallets immediately stage themselves forward so that the next available pallet can be accessed. Push back rack is a LIFO (last in, first out) storage system.
Carton flow is a form of shelving that uses a gravity feed rear-load design. Each unit consists of one or more inclined runways. Merchandise is loaded in the rear of each runway. As an item is removed from the front, the item directly behind it slides forward in place of the previous.
The main advantage of carton flow rack over static rack or shelving systems is that merchandise remains better organized and easier to find or pick. With carton flow rack, the product is automatically rotated on a first-in, first-out basis. Merchandise is stocked in the rear of the carton flow rack and moves toward the picking station in front on an inclined shelf equipped with specially designed roller track. When a carton is removed from the picking station, the next one in line rolls to the front. Carton flow always keeps items within reach. Inventory is easier to monitor and control since products are fully visible at all times. A limitation worth mentioning is that carton flows are not well suited for larger volume or full case applications. Restocking and picking typically offer the greatest opportunity for improving efficiency within order-picking operations. With carton flow rack systems, labor savings of up to 75% can be realized almost immediately. Because items are picked from the front and stocked from the rear, both functions can be performed without interference and with minimized travel.
In a static storage system such as standard shelving, stockers and pickers often do a lot of unnecessary travel.
Cantilever is defined as “a beam anchored at one end only”. The load is held by the arm which transfers the load to the supporting upright beam/base.
Cantilever Rack Applications
Cantilever racking is primarily used for storage of bulky, oversized, long loads such as timber, plasterboard, steel trusses & piping, PVC carpet.
Very Narrow Aisle Pallet Rack (VNA). In a very narrow aisle pallet rack system, pallet racks are placed closer together than other pallet racking solutions because they are loaded and unloaded using a side loading fork lift truck; enabling aisles to be narrow and ensuring that storage space is used efficiently. The amount of product stored and warehouse footprint is maximized. VNA aisles are typically 6.6 feet wide, providing 44% more floor space than a selective pallet rack system.
Rack Mounted Guard

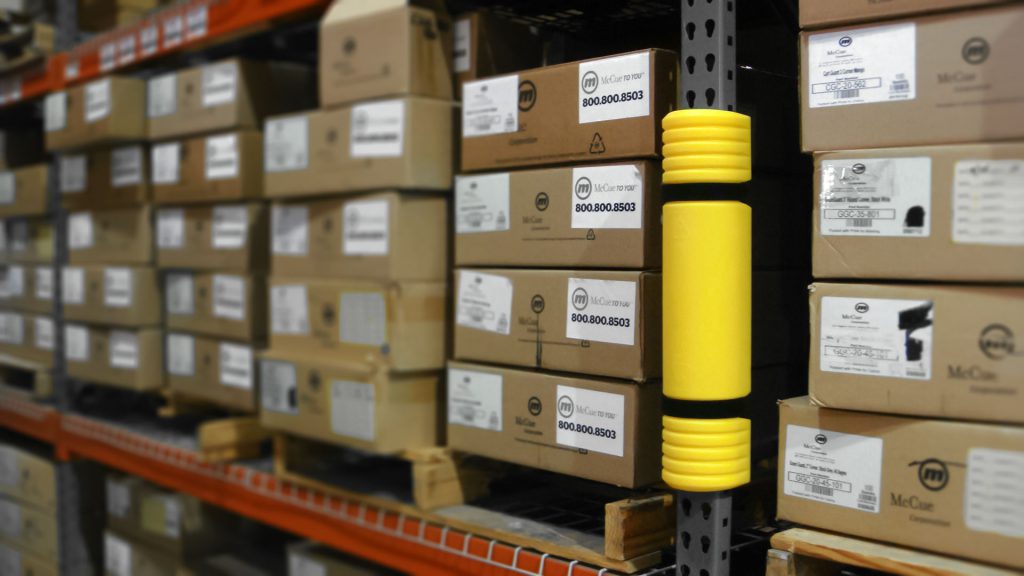

Our Rack Mounted Guard is an easy-to-install, high-strength solution to protect your racking from the always present the danger of accidental impact. Just wrap the velcro straps around the racking leg and you’re done.
